X-Pruf KeyLok

Pre-applied mechanically bonded waterproofing membrane and liner

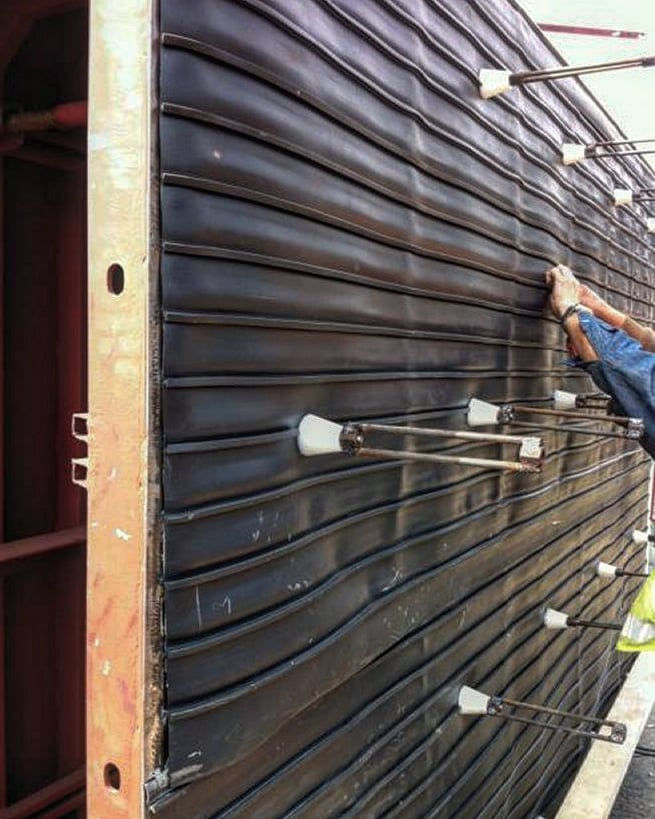

X-Pruf KeyLok is a continuously extruded sheet with a raised T profile that ‘locks’ into the concrete to produce a mechanical bond which is virtually impossible to destroy.  Since T profiles are cast into the concrete, it isolates the concrete from any harmful effects of corrosive chemicals.



Manufactured from plasticized polyvinylchloride (PVC-P), X-Pruf KeyLok can mainly be used as a waterproofing membrane for tunnels and concrete structures.  Standard thickness is 1.5mm and 2mm.



Advantages: -

  • T profile bonds integrally with concrete.

  • not affected by settlement.

  • provides a chemical resistant liner.

  • no primer required.

  • easy to weld overlaps.

  • not affected by ponded water.

​

​

Project references include: -

  • Drainage Services Department (DSD) Contract No. DC/2017/05 - Enhancement Works for Kwun Tong Sewage Pumping Station

  • MTR Corporation (MTR) South Island Line (East) Contract No. 901: Admiralty Integrated Station and SCL Enabling Works

  • MTR Contract No. K1434-14C: Station Improvement Works at Kowloon Tong

  • DSD Contract No. DC/2009/18 - HATS Stage 2A - Upgrading Works at Stonecutters Island Sewage Treatment Works - Effluent Tunnel and Disinfection Facilities

  • Airport Authority Hong Kong (AAHK) Contract No. M770-4 - H.K. Int'l Airport - Replacement of Apron Parking Stand Block Pavement with Concrete Pavement

  • MTR Contract No. C6591-13C: Provision of Lift Shaft at Yau Ma Tei Station

  • MTR Contract No. C6564-11C: Tsim Sha Tsui Station Entrance A1 Enhancement Works

  • Highways Department (HyD) Contract No. HY/2012/11 - Provision of Barrier-free Access Facilities for Highway Structures - Phase 3 Contract 1

  • AAHK Contract No. P533 - H.K. Int'l Airport - Midfield Concourse and Terminal Building

  • AAHK Contract No. P546 - H.K. Int'l Airport - Western Apron Expansion Works

  • MTR Contract No. C6598-13C Q023973: Relocation & Reprovision of Sea Water Cooling Mains for Elements

  • MTR West Island Line Contract No. 703: Sheung Wan-to-Sai Ying Pun Tunnel Construction

  • MTR Express Rail Link Contract No. 810B: West Kowloon Terminus Station South

  • DSD Contract No. DC/2009/21 - Provision of Interception Facilities at Jordan Valley Box Culvert (JVBC)

  • HyD Contract No. 04/HY/2006 - Reconstruction of Bus Terminus near Man Yiu Street & Man Kwong Street

  • DSD Contract No. DC/2009/11 - Tuen Mun Western Trunk Sewerage

  • DSD Contract No. DC/2008/12 - Sewage Interception Scheme in Kowloon City - Pumping Stations, Rising Mains & Trunk Sewers

  • DSD Contract No. DC/2007/18 - Yung Shue Wan & Sok Kwu Wan Village Sewerage, Stage 1 Works

  • City of Dreams Casino and Hotel Project, Cotai, Macau

  • ...etc.

​
